Darwin Review - Journal of Experimental Botany 62: 3289-3309 (2011)

First off the mark: early seed germination

Karin Weitbrecht*, Kerstin Müller*, Gerhard Leubner-Metzger

University of Freiburg, Faculty of Biology, Institute for Biology II, Botany / Plant Physiology, Schänzlestr. 1, D-79104 Freiburg, Germany, Web: 'The Seed Biology Place' http://www.seedbiology.de (K.W., K.M., G.L.-M.)
Department of Biological Sciences, Simon Fraser University, 8888, University Drive, Burnaby BC, V5A 1S6, Canada (K.M.)
*Joint first authors: K.W., K.M.

Received December , 2010; accepted February 23, 2010; published online April 12, 2010
DOI 10.1111/j.1469-8137.2010.03249.x


Hormones seed germination

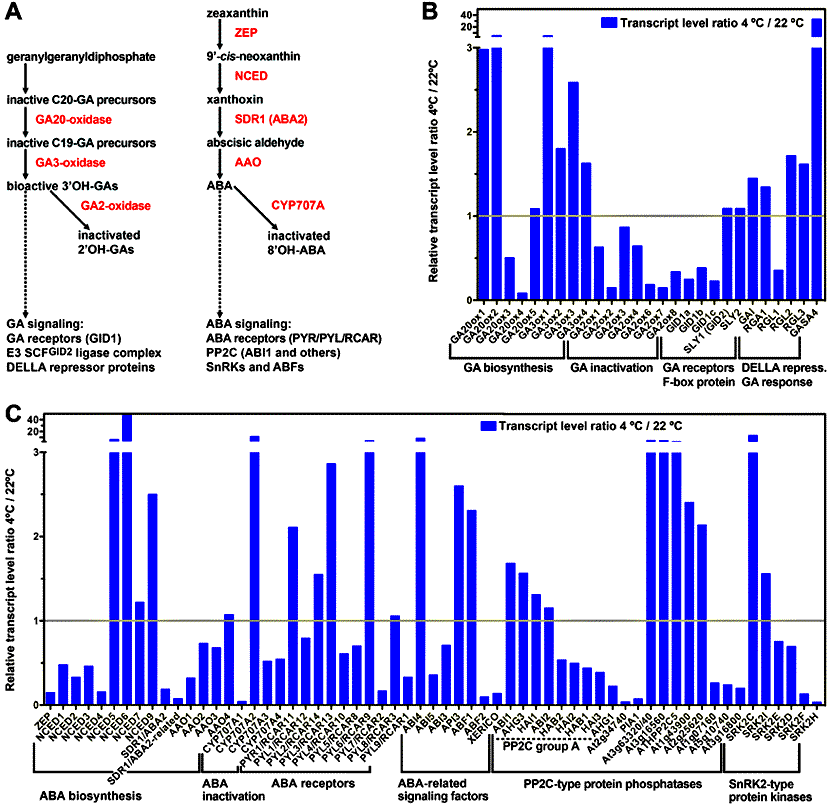

Supplementary Figure S1. Regulation of GA- and ABA-related transcripts by cold stratification of Arabidopsis thaliana seeds.
(A) Important steps in gibberellin (GA) and abscisic acid (ABA) biosynthesis, degradation and signaling. ZEP = zeaxanthin epoxidase, NCED = nine-cis-epoxycarotenoid dioxygenase, SDR1/ABA2 = short-chain dehydrogenase reductase, AAO = abscisic aldehyde oxidase, CYP707A = ABA 8'-hydroxylase.
(B) and (C) The transcript level ratios 4 ºC / 22 ºC for GA- and ABA-related genes calculated from seeds incubated for 96 h in darkness (Yamauchi et al., 2004), data are available via the seed-specific eFP-browser at www.bar.utoronto.ca (Winter et al., 2007; Bassel et al., 2008).

Article in PDF format (900 KB)
Abstract
Figure 1         Figure 2         Figure 3         Figure 4         Figure 5         Figure 6
Figure 7         Figure 8         Suppl. Fig. S1         Suppl. Fig. S2         Suppl. Table 1
